VIVOTEK　AW-IHH-0800 産業用4xGE 95W PoE / PoE + 2xGE UTP + 2xGE SFPスイッチ【販売終了】

エントリーモデル

※本製品は販売終了しました。

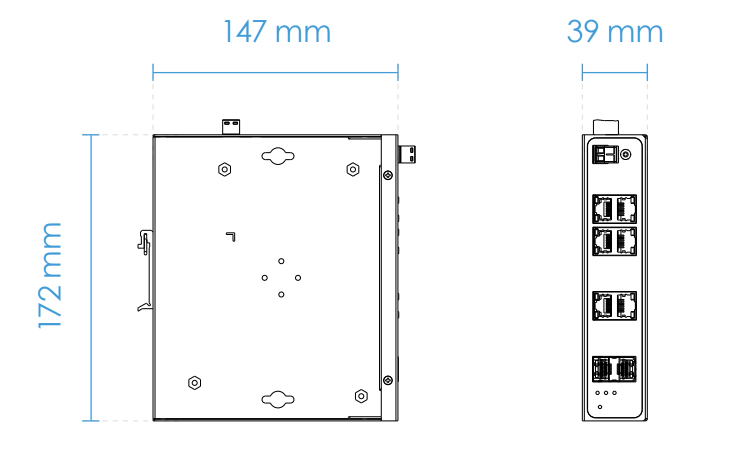

図解

Model	AW-IHH-0800
Networking Specifications	Gigabit Ethernet RJ45 PoE Port	4
	Gigabit Ethernet RJ45 port	2
	Gigabit SFP Port	2
Ethernet Performance	Switching Bandwidth	16 Gbps
	Mac Table	4K
	Buffer Memory	128 KB
	Forwarding Capacity	11.904 Mpps
	Jumbo Frame	9 KB
	Transmission Method	Store and Forward
	Auto-MDI/MDI-X, AutoNegotiation	Supported
Standards	IEEE 802.3 10-BASE-T (Ethernet)	Supported
	IEEE 802.3u 100-BASE-TX (Fast Ethernet)	Supported
	IEEE 802.3ab 1000-BASE-T (Gigabit Ethernet)	Supported
	IEEE 802.3z 1000-BASE-X (Gigabit Ethernet)	Supported
	IEEE 802.3x Flow Control (Full-Duplex Flow Control)	Supported
	IEEE 802.3af Power over Ethernet	Supported
	IEEE 802.3at Power over Ethernet Plus	Supported
Power Specifications	Power Input Voltage	PW1: 54 ~ 56VDC PW2: 54 ~ 56VDC Redundant Power Backup
	Max. PoE Output Power /Per PoE Port	56VDC, Max. 95W
	Total PoE Power Budget	240W
	IEEE 802.3af/at	Supported
	Power Pin Assignment	1/2(-), 3/6(+), 4/5(+), 7/8(-)
	PoE PD Auto Detection	Supported
	Surge Protection/Per PoE port	12KV
General	Operating Temperature	-40°C~ 75°C (-40°F~ 167°F)
	Storage Temperature	-40°C~ 85°C (-40°F~ 185°F)
	Operating Humidity	5% ~ 95% non-condensing
	Dimensions	39 (W) x 172 (H) x 147 (D) mm
	Weight	0.7 kg
Certifications	EMS	EN61000-4-2 ESD, EN61000-4-3 RS, EN61000-4-4 EFT, EN61000-4-5 Surge, EN61000-4-6 CS, EN61000- 4-8 PFMF
	EMI	FCC Part 15 Class A
	Safety	CE, LVD, VCCI
	Vibration	IEC 60068-2-6
	Shock	IEC 60068-2-27
	Freefall	IEC 60068-2-32
